Our Equipment
State-of-the-art Equipment
Corem has the necessary equipment to carry out tasks ranging from simple sieving to comprehensive pilot-scale testing of a complete mineral processing operation at a semi-industrial level.
Corem’s efficient facilities and equipment allow the processing of samples ranging from a few grams to several hundred tons, whether they are drill cores or roughly crushed rock.
Comminution
Pilot plant equipmentS
HPGR (800 mm x 250 mm)
Crushers (jaw, cone, roll)
Mills (bars, balls, pebbles: 2 in x 12 in to 30 in x 60 in)
CharacteriSation tests
Bond indices:
Abrasion Work Index (Ai)
Ball Mill Work Index (WiB)
Rod Mill Work Index (WiR)
HPGR (Piston & die)
Levin grindability index
Karra grindability index
Impact tests (Drop Weight Test (Axb))
Abrasion tests (ta)
Licensed tests:
- HPGR (Weir Minerals)
- SAGDesignTM (Starkey)
- SAG VariabilityTM
- SMC Test (JKTech)
- IsaMill TM Signature Plot (Glencore Technology)
Physical separation
GRAVITY
Ore sorter (COMEX, 1 m width conveyor, 4 sensors)
Spirales (HC-33, WW6+, FM1, SC21, HG and MG series)
Multi-gravity separators: (Knelson (3″, 7″), Falcon (C4, C10), CVD-6, Mozley (MGS), Kelsey jig)
Hydraulic classifiers (CrossflowTM (64 sq. in, 225 sq. in), RefluxTM (RC100), Richard tube
Dense media separators (Heavy liquid (LST à 2.96 g/cm³), Gekko Vicking Cone, Jig (16 dm²))
Shaking tables (Wilfley, Mozley )
Air separators (Air shaking table, Kice Multi-Aspirator(R))
MagneticS
Lab-scale
- Dry processing
Davis tube (0 – 3500G), matrix (5000 – 20 000G) - Wet processing
(drum (1000 – 15 000G))
Pilot-scale
- Dry processing
(drum (1000G – 10 000G)) - Wet processing
(drum (500G – 6000G), swivel ring (12 000G), SLon(TM) (10 000G))
Extractive metallurgy / hydrometallurgy
EQUIPMENTS
Reactors (2 to 2000 l)
Autoclave (1 to 2 l)
Pressure filters and vacuum filters (horizontal and vertical)
Wet scrubber
Resin columns
Rotary kilns
Heap leaching column
Pelletizing and thermal processes
Characterization of lump ores, sinter agglomerates, and pellets
Physical tests
Determination of the crushing strength (CCS) (ISO 4700)
Determination of the tumble and abrasion indices (ISO 3271)
Blast furnace tests
Determination of the reducibility by the final degree of reduction index or by the rate of reduction index: relative reducibility (ISO 7215) and reducibility R40 (ISO 4695)
Determination of the free-swelling index: Swelling (ISO 4698)
Determination of the low temperature reduction-disintegration indices by static method: Static LTD -1 (ISO 4696-1), Static LTD -2 (4692-2)
Determination of the low temperature reduction-disintegration indices by dynamic method: Dynamic LTD (ISO 13930)
Determination of the reduction under load: RUL (ISO 7992)
Determination of the softening temperature: Softening (Corem)
Direct reduction tests
Determination of the reducibility index, final degree of reduction and degree of metallization: DR90 (ISO 11258)
Determination of the reducibility index and degree of metallization by simulation of the direct reduction process: R180 (Corem)
Determination of the reducibility index, the degree of metallization, the clustering, the deformation, the disintegration and the carburation by simulation of the direct reduction process: R300 (Corem – available only for Corem’s members)
Determination of the low-temperature reduction disintegration index and degree of metallization: Linder (ISO 11257)
Determination of the clustering index: Clustering (ISO 11256, HYL)
Determination of the reducibility index by the rate of reduction index: HYL reducibility (HYL)
Determination of the free-swelling index: HYL swelling (HYL)
Determination of the low-temperature reduction disintegration index: HYL LTD (HYL)
Laboratory and pilot-scale equipment
Balling tire (exploratory tests)
Balling disc with a diameter of 0.3 m
Balling disc with a diameter of 1 m
Roller screen
Firing simulators for travelling grate and grate-kiln-cooler processes
Basket firing in a pot grate (exploratory tests)
Eirich mixer (micro-ball milling)
Komarek press (briquetting)
Verdes extrusion machine
Automated optical microscope for mineralogical study of pellets

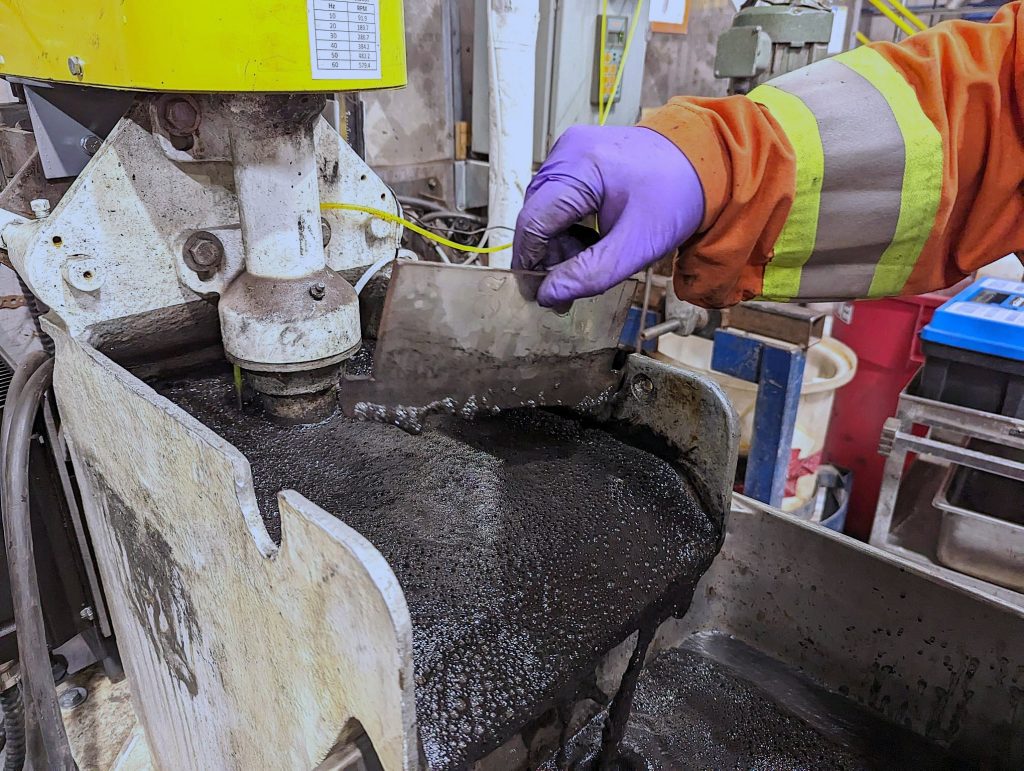

FLOTATION
EQUIPMENT
Lab-scale cells(1.25, 2.5, 5, 10L)
Automated cells (1.25, 2.5, 5, 10L)
Pilot-scale cell banks (7.5L x 8, 28L x 15, 72L x 12, 170L x 4)
Columns (12″ [up tp 280L] x 4, 6″ [up to 135L] x 1, 4″ [up to 60L] x 3, 3″ [up to 9L] x 2)
HydroFloatTM
Portable hydrodynamic tools for plant audits
Mineralogy
Areas of application
Petrographic studies of new deposits
Evaluation of the enrichment potential of mineral deposits
Characterization of drill cores
Study of samples for the diagnosis of process problems
Prediction of plant performance
Studies to determine elemental and mineral distribution
Characterization of iron ore pellets

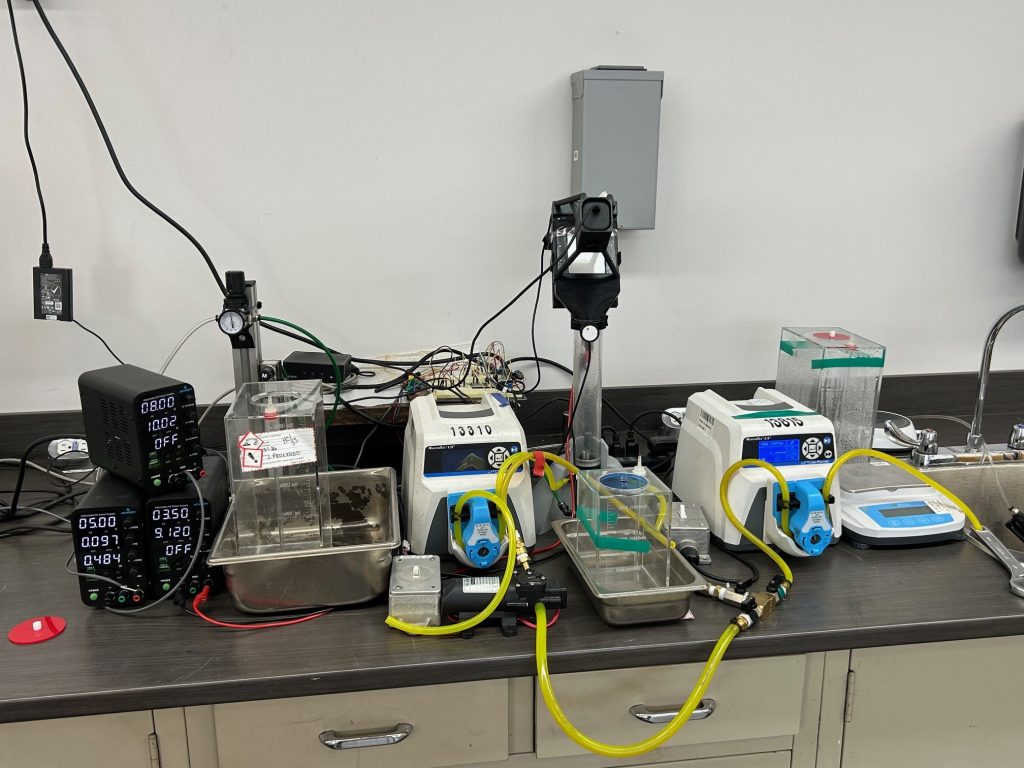

Mineralurgy Analytics and Technology
EXPERTISE
M.A.T drives innovation at the crossroads of mineral processing and advanced digital technologies.
Our team develops and integrates cutting-edge solutions in machine vision, sensor design, data science, and automation to tackle real challenges in mining operations.
Full equipment list coming soon!
